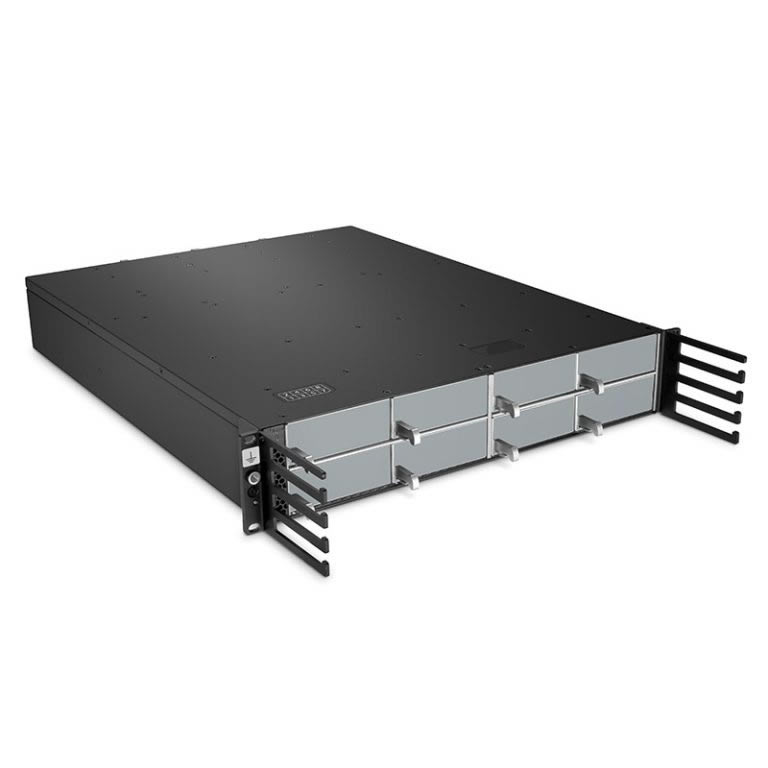

This device supports unified management of its optical-layer and electrical-layer boards based on SDN, which allows integrated configuration, multi-rate hybrid transmission, efficient operation and maintenance, thus it can be utilized in large-capacity transmission in all scenarios. It also provides up to 6.4 Tbs of capacity in two rack units, offers tunable capacity, from 100 Gb/s to 400 Gb/s.
Specifications
Slot Count
8-slot
Enclosure Type
Rack Mountable
Power Supply
2 (1+1 Redundancy), 220 V AC, Hot-swappable
Main Control Card Interface
1x Network Management Monitoring Port, 1x COM, 2x ETH, 1x USB
Relative Humidity
5%-85% (Non-condensing)
Power Consumption
Static Power Consumption ≤75W
Maximum Power Consumption ≤1200W
Maximum Power Consumption ≤1200W
Maximun Capacity
Up to 6.4 Tbps
Management
FCP NX
Supported Service Types
Ethernet, OTN, SDH, SAN
Maximum Rate
100-400 Gbps
Network Typology
Point-to-point, Chain, Star, Ring, Ring with Chain, Mesh, etc
Line rate
100/200/400 Gbps
Security
Loopback, PRBS, LLDP, ESC, TACAS, RADIUS, AES-256
Maximum Wavelength Number
Fixed Time Interval 96 Wavelengths @ 50 GHz
Flex-grid Related to the Width of the Flex Channel
Flex-grid Related to the Width of the Flex Channel
Hot-swappable Fans
3 (2+1 Redundancy), Front-to-Back
Low Latency
≤12.72 μs
Dimensions (HxWxD)
3.39″x17.44″x22.44″ (86x443x570mm)
Operating Temperature
-5 to 45°C (14 to 122°F)
